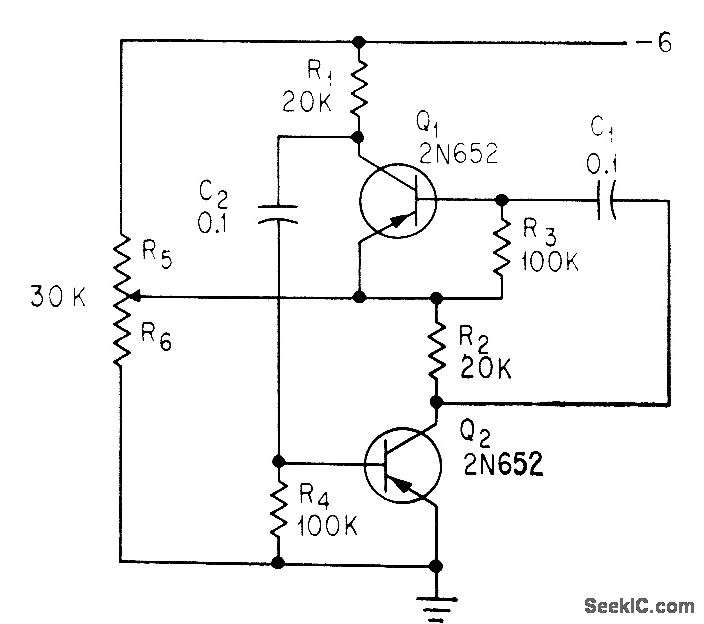

TRANSISTORIZED_FREE_RUNNING_CASCODE_MULTIVIBRATOR

Published:2009/7/16 11:27:00 Author:Jessie | From:SeekIC

Output waveform can be rectangular or sawtooth, with polarity depending on setting of potentiometer. -C. Sing, Advantages of Free-Running Cascade Multivibrators, Electronics, 37:5, p 28-29.
