TRAFFIC_LIGHT_SEQUENCER_CIRCUIT

Published:2009/6/22 22:36:00 Author:May | From:SeekIC

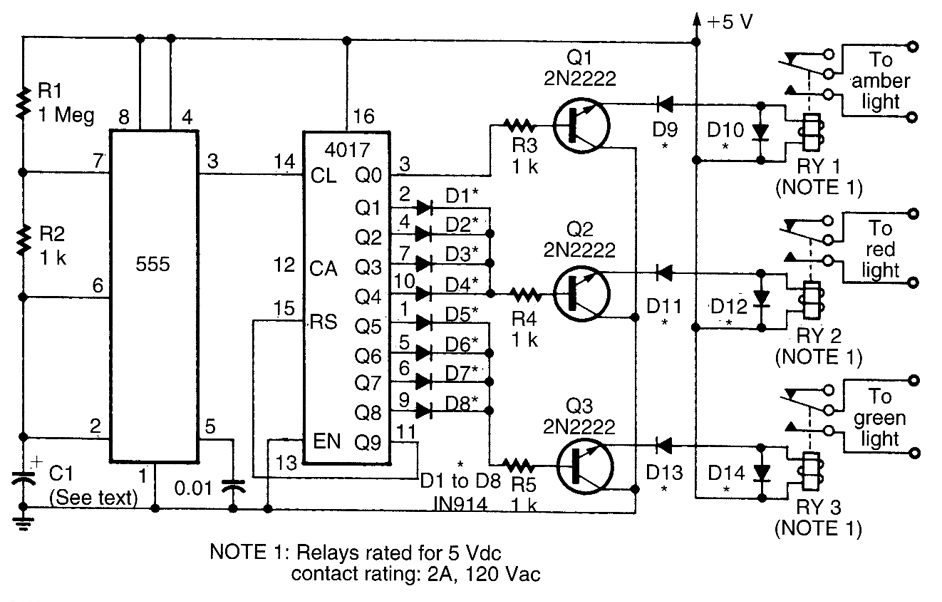

This circuit uses a 555 timer to drive a 4017 counter. The counter outputs drive transistor relay drivers. Time lights on can be proportioned by changing connections of outputs of counter.
