TOP_OCTAVE_GENERATOR

Published:2009/6/24 1:59:00 Author:May | From:SeekIC

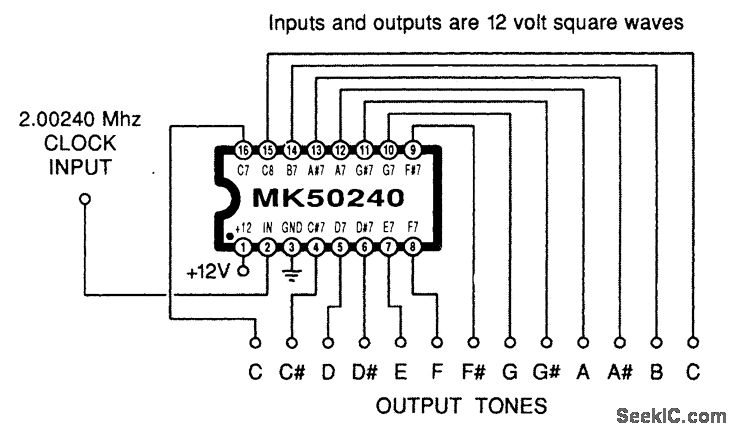

Using an MK50240, this circuit produces 12 top octave tones. The input and output lines can be divided using a binary divider IC to obtain the lower notes.
