TEMPERATURE_COMPENSATING_VFO_CIRCUITS

Published:2009/7/24 2:40:00 Author:Jessie | From:SeekIC

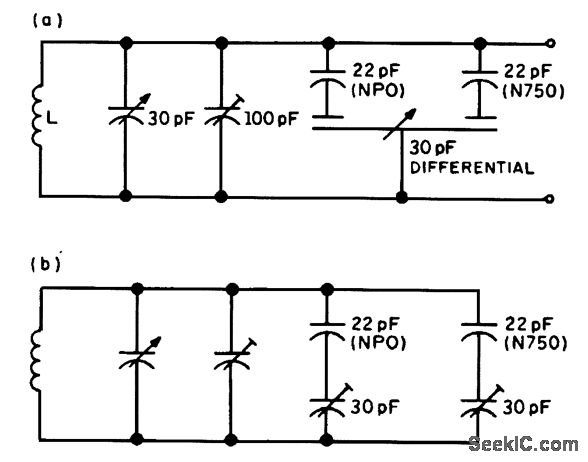

Here are two ways in which adjustable temperature compensation can be achieved: (a) with a differential capacitor, and (b) with two conventional trimmers.
