TANGENTIAL_WAVEFORM_GENERATOR

Published:2009/7/24 3:38:00 Author:Jessie | From:SeekIC

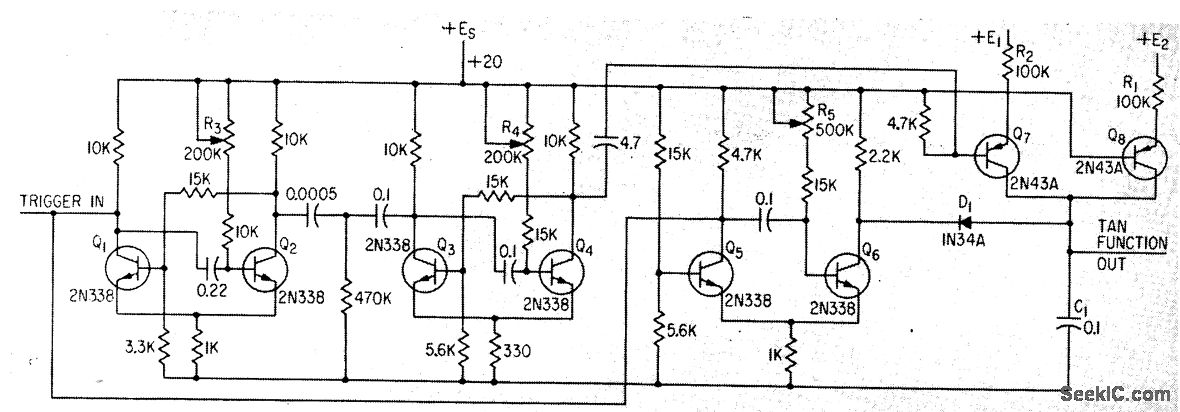

Generates approximation of tangent function for slant-range correction of video signal fromairborne infrared scanner. Ramp mvbr Q5-Q6 and timing mvbr Q1-Q2 are triggered simultaneously.-J. L. Woika, Generating Tangential Sweeps for Infrared Mapping, Electronics, 34:41, p 64-66.
