TA8256HV31.5 supper bass processing integrated circuit

Published:2011/5/11 5:23:00 Author:chopper | Keyword: supper bass processing, integrated circuit | From:SeekIC

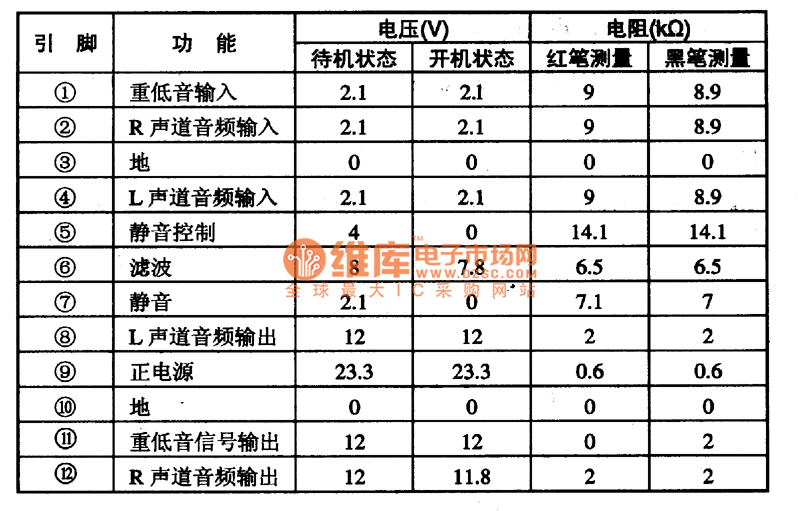

TA8256HV31.5 is a new audio signal amplification integrated circuit manufactured by Toshiba.It is applied to audio device and new large-screen color TV.1.Functional characteristicsIn the TA8256HV31.5 integrated circuit there are three audio processing circuits with the same function and audio signal.Two of them process the sound channel signal of R,L;the other one processes supper bass signal.2.Function and data of pinsTA8256HV31.5 integrated circuit is applied to Changhong CN-l5 chipset color TVs,its function and data of pins of the integrated circuit is shown as following table 1.
