TA8141S remote control signal receiving circuit diagram

Published:2011/5/5 3:46:00 Author:Ecco | Keyword: remote control , signal receiving circuit | From:SeekIC

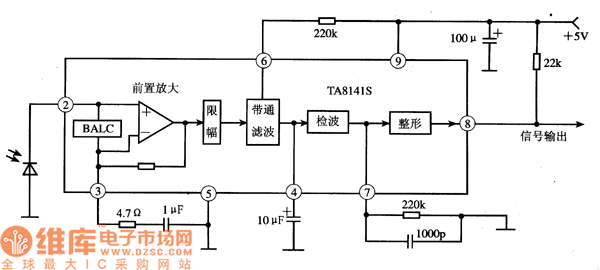

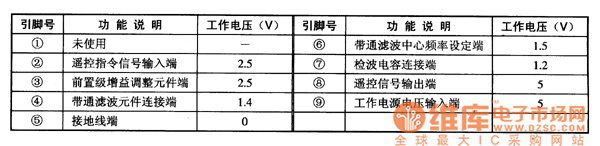

TA8141S is the remote control signal receiving circuit manufactured by Toshiba in Japan, it is widely used in color television sets, DVD players, car stereos, air conditioners and electric fans and other remote systems. 1. Pin functions and data TA81415 IC uses 9-pin single in-line package, the pin functions and data are listed in Table 1. Table 1 shows TA81415 IC pin functions and data 2. The block circuit diagram and typical application circuit TA81415 block circuit diagram and typical application circuit is shown in Figure 1.
