1_Hz_SINE_WAVE_OSCILLATOR

Published:2009/6/18 21:46:00 Author:May | From:SeekIC

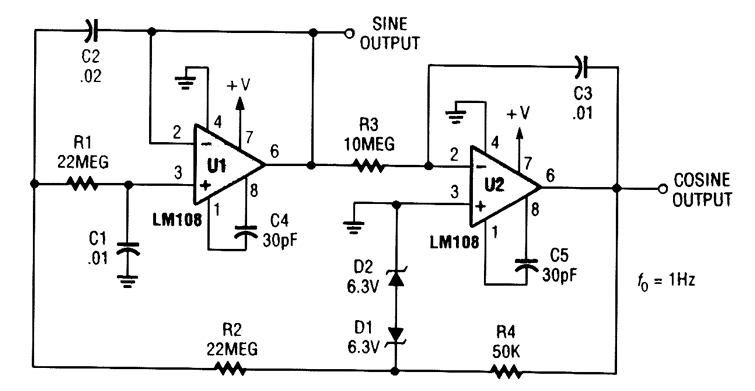

This circuit produces a 1-Hz sine wave using two op amps. A single-chip dual op amp could be used as well.
