Simple_zero_crossing_detector

Published:2009/7/24 4:32:00 Author:Jessie | From:SeekIC

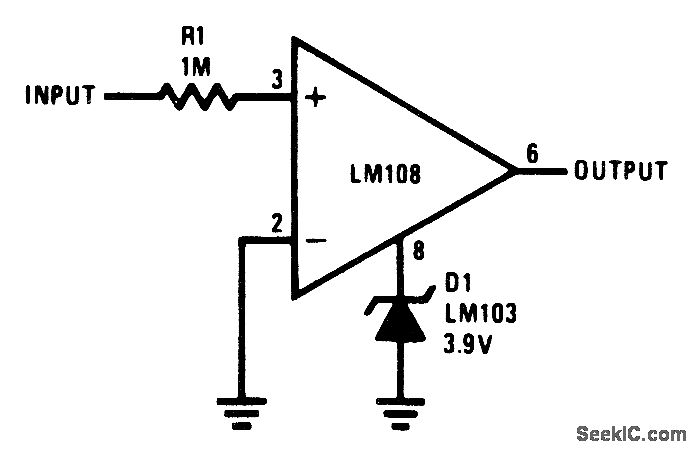

Fig. 15-17 This circuit uses an LM108 op amp as a voltage comparator to produce a simple zero-crossing detector. The output is clamped so that the circuit can drive DTL or TTL directly. National Semiconductor Linea Applications Handbook 1991, p. 71.
