Simple multi-harmonic generator

Published:2011/4/14 2:39:00 Author:Ecco | Keyword: Simple , multi-harmonic generator | From:SeekIC

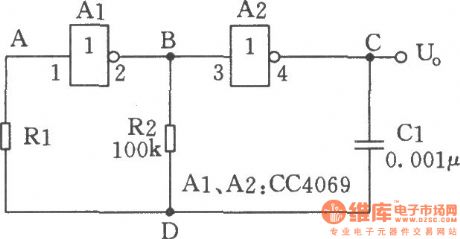

Thecircuit shown in the chart is a multi-harmonic generator circuit which is comprised of hex inverter CC4069 and so on. The circuit is suitable for low-frequency clock oscillation circuit which are less strict for frequency stability and accuracy.
