Simple_level_detector_using_a_comparator

Published:2009/7/24 4:27:00 Author:Jessie | From:SeekIC

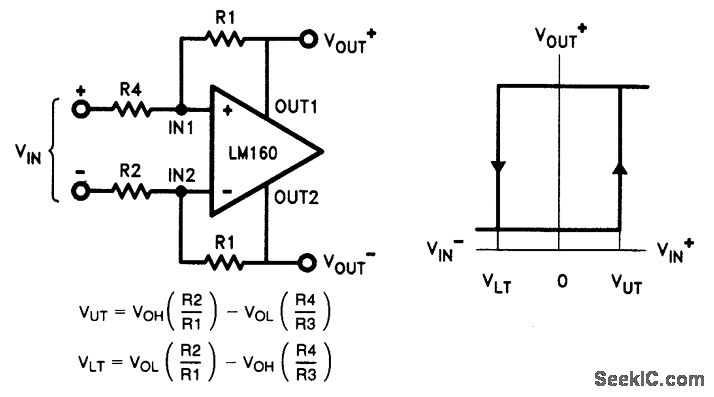

Fig. 15-13 This circuit shows how a high-speed comparator (LM160) can be used as a level detector or line receiver. The hysteresis graph and equations show the relationship between input and output voltages．National Semiconductor Linear Applications Handbook. 1991. p. 326.
