Signal Tracer and Injector

Published:2012/12/3 20:42:00 Author:muriel | Keyword: Signal Tracer, Injector | From:SeekIC

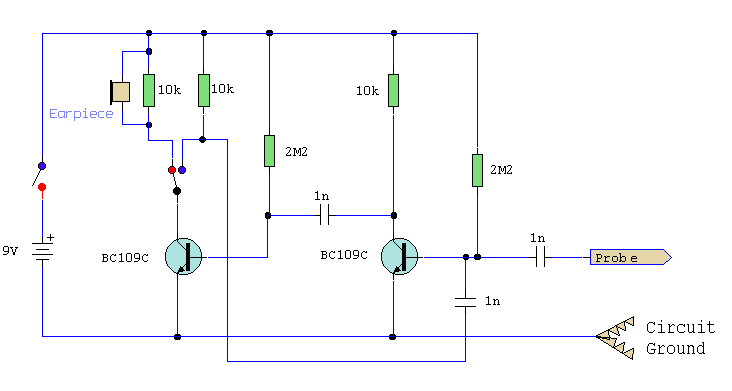

A simple test circuit to fault find audio and radio equipment. Can be used to inject a square wave signal, rich in harmonics, or used with headphones as an audio tracer.
