Sequential_timing_delayed_one_shot

Published:2009/7/24 6:01:00 Author:Jessie | From:SeekIC

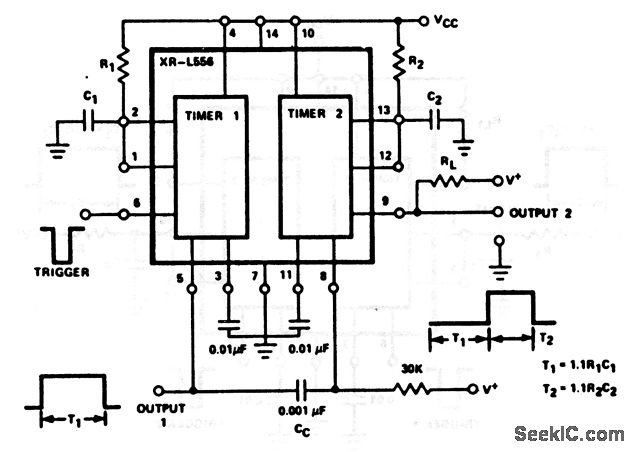

In this circuit, the output of one timer section triggers the other section so that the output of T2 is delayed from the initial trigger at pin 6 by a time delay of T1. Both T1 and T2 are set by values of external components, as shown. EXAR Corporation Databook, 1990 , p. 5-221.
