SUPERREGENERATIVE

Published:2009/7/15 23:37:00 Author:Jessie | From:SeekIC

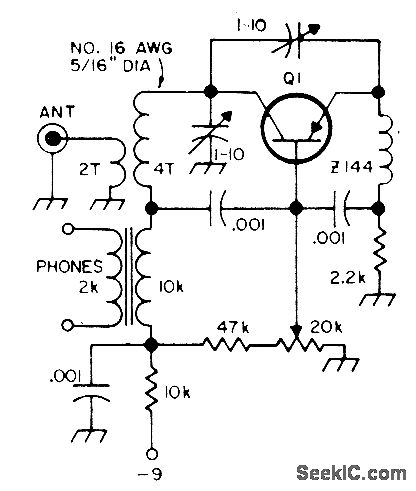

Simple single-transistor superregenerative receiver is adequate for copying many local signals in 2-meter amateur band. With components shown, tuning range is about 90 to 150 MHz. Transistor can be GE-9 or HEP-2.-Circuits, 73 Magazine, Feb. 1974, p 100.
