STANDARD_PARALLEL_TRANSISTOR_OUTPUT_DOUBLER

Published:2009/7/21 7:01:00 Author:Jessie | From:SeekIC

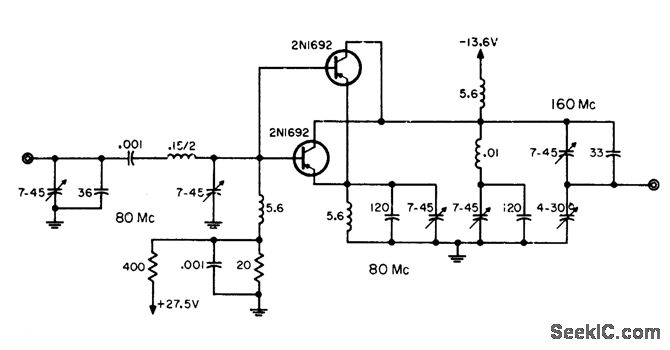

Input is tuned to 80 Mc and output to 160 Mc. Parallel tuned circuit with built-in trap is required in output circuit to suppress 80-Mc fundamental. Conversion power gain is 6 db. Maximum power is 650 mw.-W. A. Rheinfelder, Choosing the Best Transmitter Output Stage, EEE, 11:10, p 48-53.
