SQUARE_WAVES_FROM_MVBR

Published:2009/7/24 2:12:00 Author:Jessie | From:SeekIC

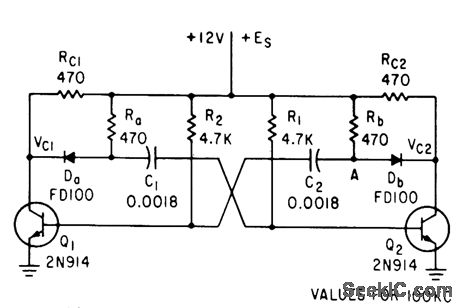

Use of four additional components (two resistors and two diodes) with basic free-running mvbr changes its output to dean square wave. Operating range is from several cps to several Mc.-R. O. Gregory and J. C. Bowers, Simple Square-Wave Generator, Electronics, 35:51, p 47.
