SINGLE_PULSE

Published:2009/7/16 2:35:00 Author:Jessie | From:SeekIC

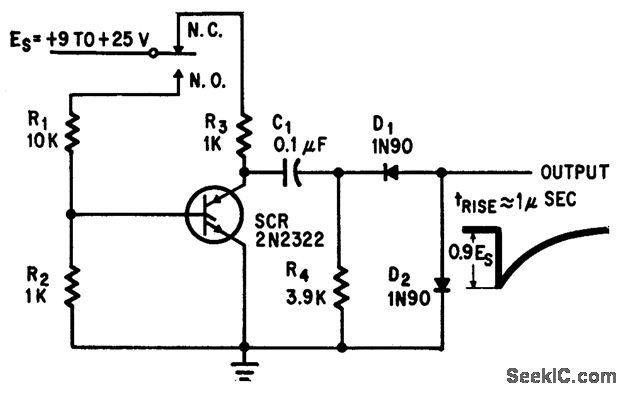

Push button fires scr to produce single pulse with rise time of 1 micro. sec.-R. W. Bailey, Push Button SCR Equals Fast Pulse, Electronics, 37:30, p 41-42.
