SINE_WAVE_CLIPPER

Published:2009/7/16 0:52:00 Author:Jessie | From:SeekIC

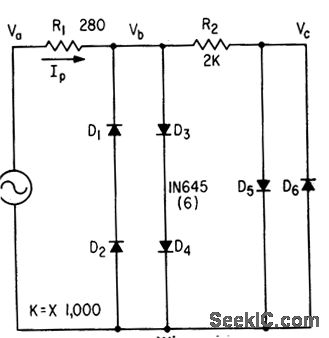

When driven by sine waves circuit gives high-quality square waves over wide frequency range. Output voltage is essentially constant ct 1.5 v peak-to-peak if input voltage is high enough to saturate silicon diodes.-W. E. Nemeth, Two. State Sine-Wave Clipper, Electronics, 34:11, p 64.
