SINE_SQUARE_WAVE_PHASE_SHIFT_OSCILLA_TOR

Published:2009/7/16 1:27:00 Author:Jessie | From:SeekIC

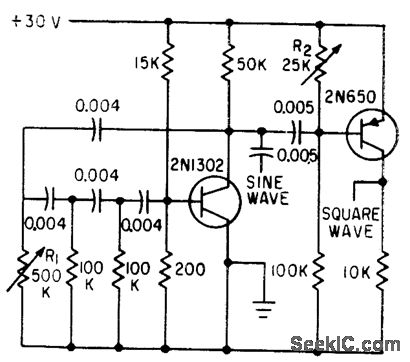

R1 controls oscillator frequency and R2 controls width of square wove having same frequency as sine-wave output.-F. W. Kear, Designing Transistor Phase-Shift Oscillators, Electronics, 35:11, p 72-74.
