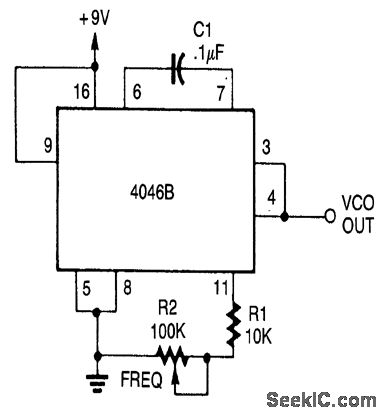

A CD4046B PLL is used as a simple generator.The range is 200 Hz to 2 kHz, but it can be changed by changing C1.
