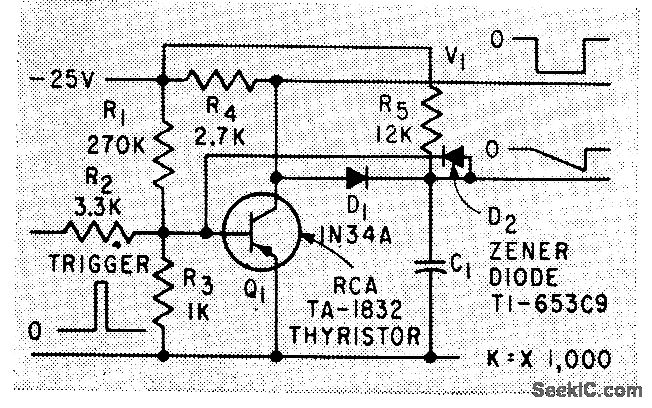

SIMPLE_SQUARE_WAVE_GENERATOR

Published:2009/7/16 3:19:00 Author:Jessie | From:SeekIC

Circuit performance is mode independent of active elements by using transistor only as switch. For reliable operation, circuit requires extra 10% of output-pulse-width dead time between triggers.-C. A.. Von Urff and R. W. Ahrons, How to Generate Accurate Sawtooth and Pulse Waves, Electronics, 32:50, p 64-66.
