SIMPLE_SAWTOOTH

Published:2009/7/23 22:30:00 Author:Jessie | From:SeekIC

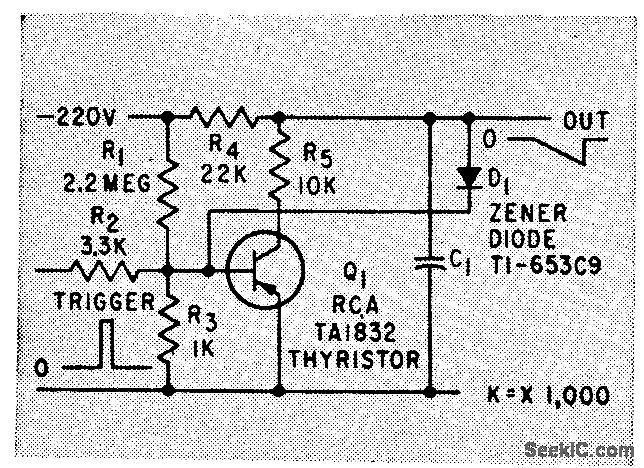

Uses semiconductor switch Q1, whose amplitude is controlled by zener diode D1. Operation on only small part of R-C charging curve helps make out put pulse widths, amplitudes, and waveform timing independent of active elements in circuit.-C. A. Von Urff and R. W. Ahrons, How to Generate Accurate Sawtoolh and Pulse Waves, Electronics, 32:50, p 64-66.
