SIMPLE_PULSE_STRETCHER

Published:2009/7/16 22:06:00 Author:Jessie | From:SeekIC

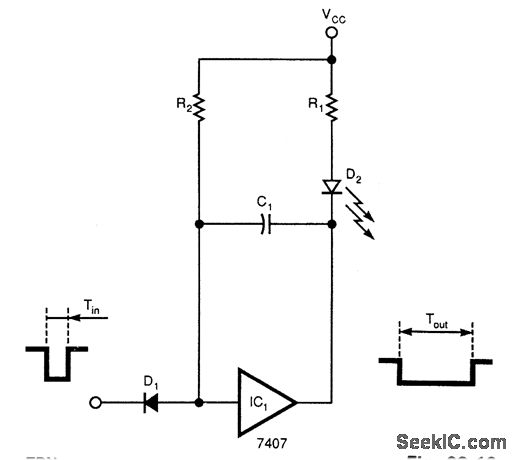

A single gate (open collector, noninverting) produces a simple one-shot to produce a pulse thatstretches equal to the pulse duration，plus the R1C1 time constant. R2 is a pull-up resistor to keep thegate's input high while waiting for a pulse.
