SIMPLEST_SWEEP_GENERATOR

Published:2009/7/13 6:09:00 Author:May | From:SeekIC

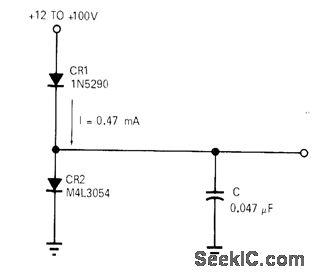

Requires only constant-current generator CR1, Schottky diode CR2, and capacitor. Provides excellent linearity (0.07%) and stability over wide range of supply voltages and temperatures. Sweep rates as high as 100 kHz can be obtained by changing value of C. Article gives design equations.-DR Morgan, Sweep Generator Boasts Only Three Parts, EDN Magazine, Sept. 15, 1970, p 57.
