SELF_REACTANCE_MODULATION

Published:2009/7/14 22:51:00 Author:Jessie | From:SeekIC

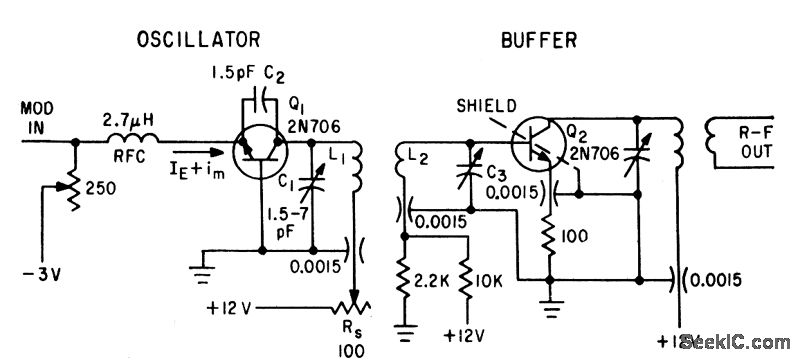

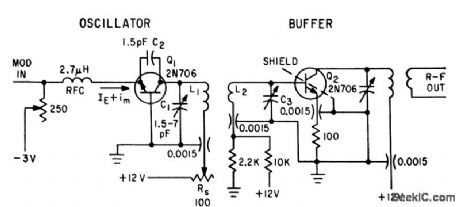

Modulation current injected at emitter changes collector-base voltage, thus varying output capacitance, tank resonant frequency, and oscillator frequency +or 230-Mc pam/f-m telemetery beacon.-T. M. Conrad, Self-Reactance Modulation in Telemetry Oscillators, Electronics, 35:9, p 35-37.
