Remote_control_recetver

Published:2009/7/23 22:09:00 Author:Jessie | From:SeekIC

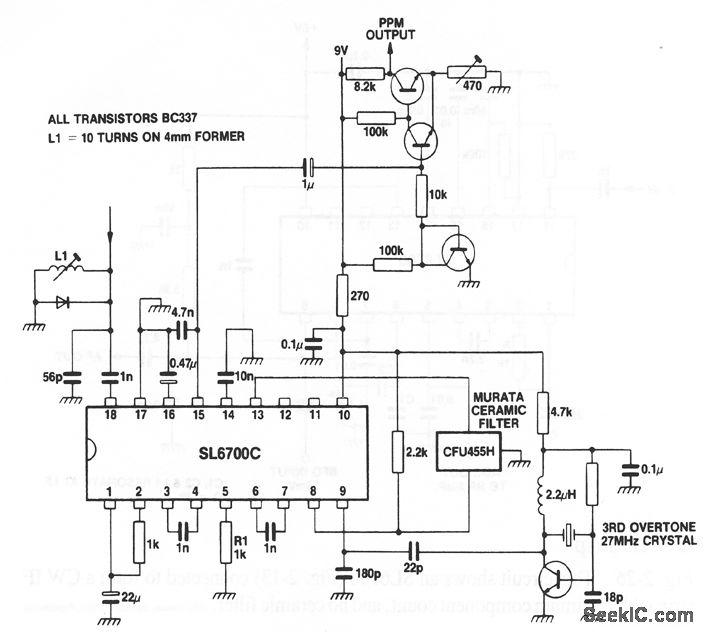

This circuit shows an SL6700 (Fig. 2-13) used as a complete 27-MHz remote-control receiver (such as used for most model controls).
