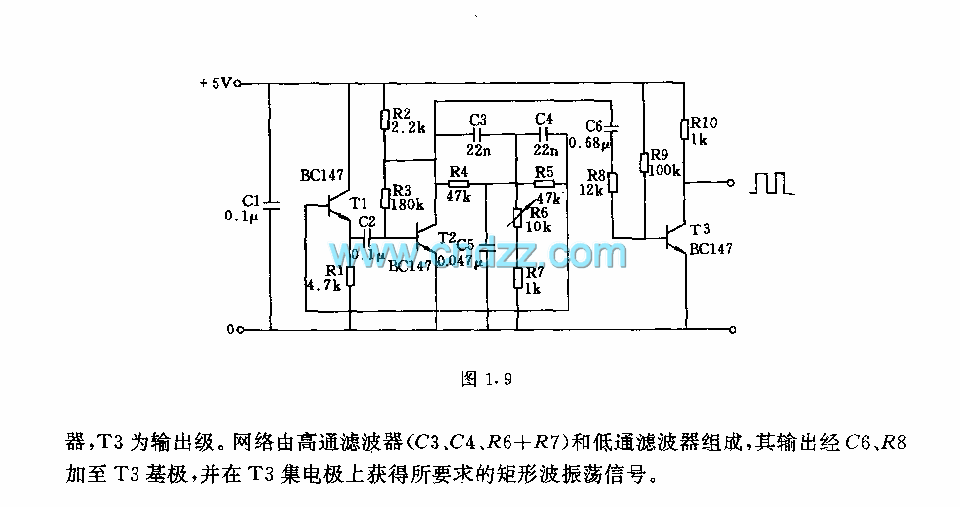

Rectangular wave generator ( Figure 1.9 ) circuit

Published:2011/11/28 20:54:00 Author:Ecco | Keyword: Rectangular wave generator | From:SeekIC

In the circuit, T1, T2 form the oscillator, and T3 is the output stage. Network consists of high-pass filter (C3, C4, R6 + R7) and low-pass filter. Its output is added to T3 base by C6, R8 to get the required rectangular wave oscillation signal collector of T3.
