Rectangular liquid generator circuit diagram 1.9

Published:2011/11/21 0:55:00 Author:Ecco | Keyword: Rectangular liquid generator | From:SeekIC

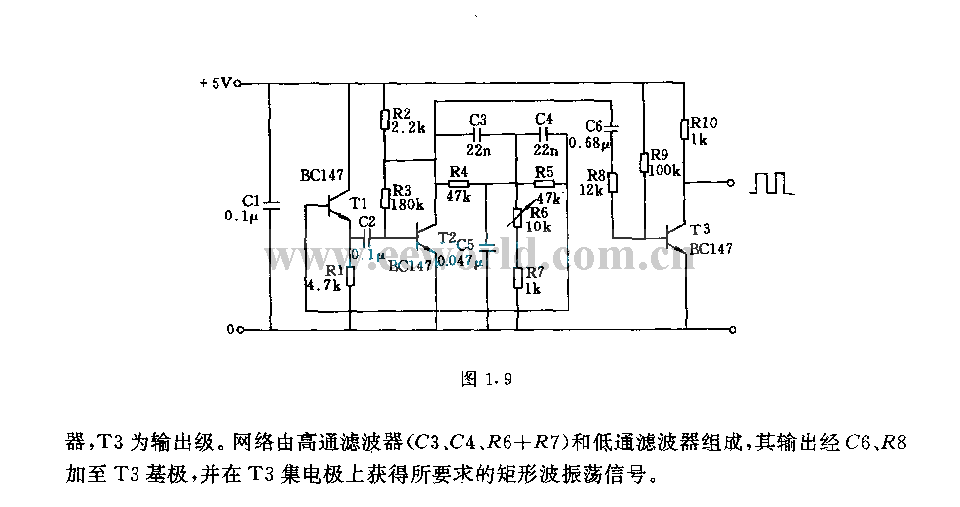

In the circuit , T1 and T2 form the inherent oscillator. T3 is the output stage . The network consists of high-pass filter (C3, C4, R6 + R7) and low-pass filter, and its output is added to T3 base by C6, R8, and it obtains the required rectangular wave oscillation signal on the collector of T3.
