RZ_TO_NRZ_ONE_SHOT

Published:2009/7/16 5:26:00 Author:Jessie | From:SeekIC

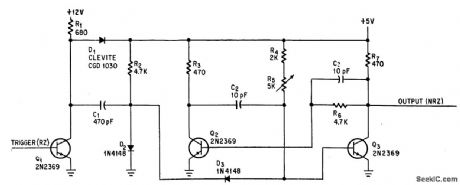

Zero recovery time of monostable multivibrator arrangement, achieved by using energy of input capacitor to recharge timing capacitor C2, makes circuit useful for converting digital data from return-to-zero format to non-return-to-zero. -P. T. Rux, One-Shot Multivibrator with Zero Recovery Time, Electronics, 39:2, p 75-76.
