RX3310A receiving module

Published:2011/7/17 22:11:00 Author:zj | Keyword: receiving module | From:SeekIC

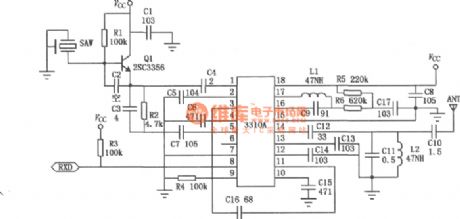

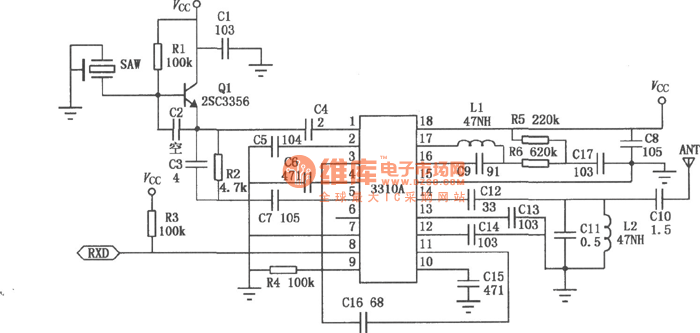

RX3310A module is dedicated to amplitude shift keying modulation of ASK wireless remote control and digital signal receiving module. The module uses a high performance wireless remote control and data transmission for special-purposeintegrated circuit with low noise high frequency amplifier, mixer, local oscillator, amplifier, filter, a comparator, and using 316.8MHz surface acoustic wave resonator, so the work is stable and reliable, suitable for adverse circumstances to work all the time. RX3310A superheterodyne receiver module circuit.
