RANDOM_FLASH_GENERATOR

Published:2009/7/14 4:32:00 Author:May | From:SeekIC

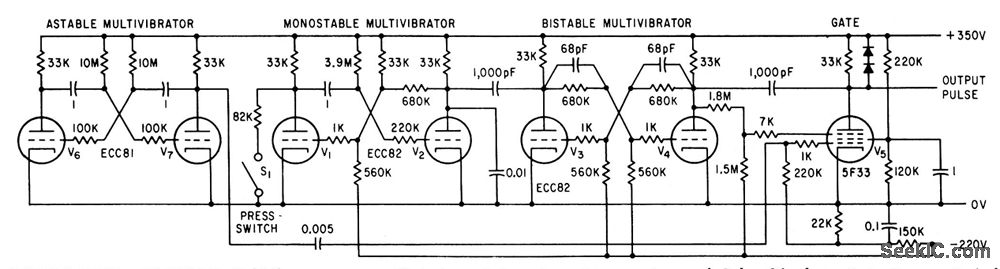

Multivibrators generate single pulse to drive flash tube at unspecified time of from 2 to 10 seconds after switch is closed.-P. Scott, Microflash and Pulse Stimulator Tests Human Response, Electronics, 34:27, p 48-51.
