RAMP_GENERATOR

Published:2009/7/17 2:06:00 Author:Jessie | From:SeekIC

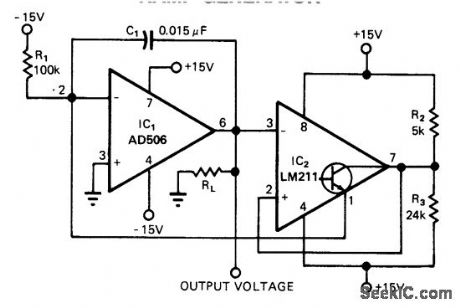

Providing a 0-to 10-V excurslon from 0.4 Hz to 100 kHz，this circuit offers both simplicity and smallslze.The negative current through R1 produces the ramp's positive slope and causes the output of IC1 to increase linearly toward the+15-V rail．
