Quadrature_oscillator

Published:2009/7/23 22:46:00 Author:Jessie | From:SeekIC

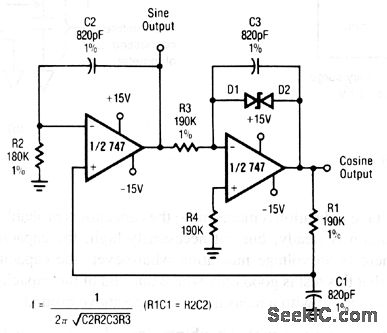

This circuit uses both sections of a 747 op amp. The frequency of the sine and cosine output is set by the values of R3, C3, R2, and C2, as shown. Raytheon Linear Integrated Circuits, 1989, p. 4-148.
