Pulse shaping circuit composed of gate circuit(CD4069)

Published:2011/5/17 4:00:00 Author:Ecco | Keyword: Pulse shaping circuit , gate circuit | From:SeekIC

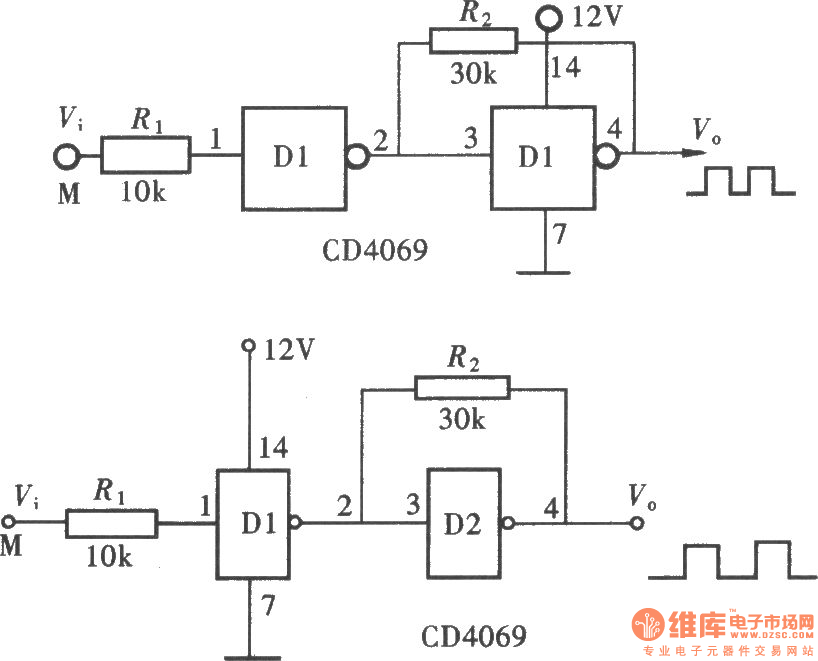

As CMOS gate having a fixed threshold level, the part lower than the threshold of the signal pulse has no responding to the input end of gate circuit. Using this feature, it can be directly used in the pulse shaping. In practical electronic circuits, integrated gate circuit is one of the most practical one. It's used as a control gate, also used to form the clock pulse generator. As an integrated gate circuit often contains several independent gates, so there are always some spare parts besides the main structure of the circuits. And they can use these extra parts to make the pulse shaping, RP, amplifier and so on. For some high demanding circuits, the direct use of plastic gate can not meet the requirements, but it will form a Schmitt trigger gate, the using of Schmitt trigger hysteresis make the pulse shaping circuits meet the requirements, this structure of the circuit is shown as the chart.
