PULSE_SHAPER_FOR_FREQUENCY_MULTIPLIER

Published:2009/7/15 2:36:00 Author:Jessie | From:SeekIC

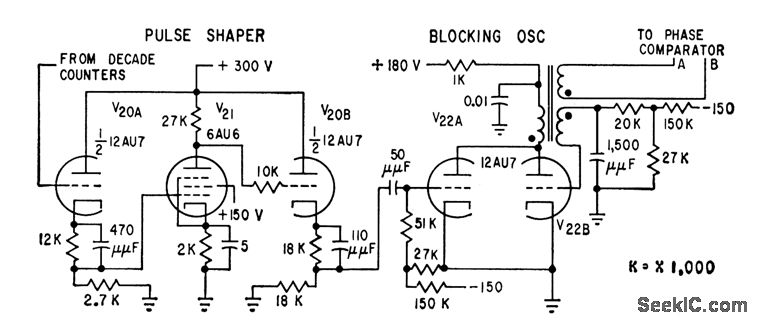

Combines clipping with cathode peaking to increase rise time to 1 microsec for 150.v pulses that drive blocking oscillator.-W. O. Brooks, Stepping up Frequency with Counter Circuits, Electronics, 32:29, p 60-62.
