POSITIVE_OR_NEGATIVE_SLOPE

Published:2009/7/23 22:45:00 Author:Jessie | From:SeekIC

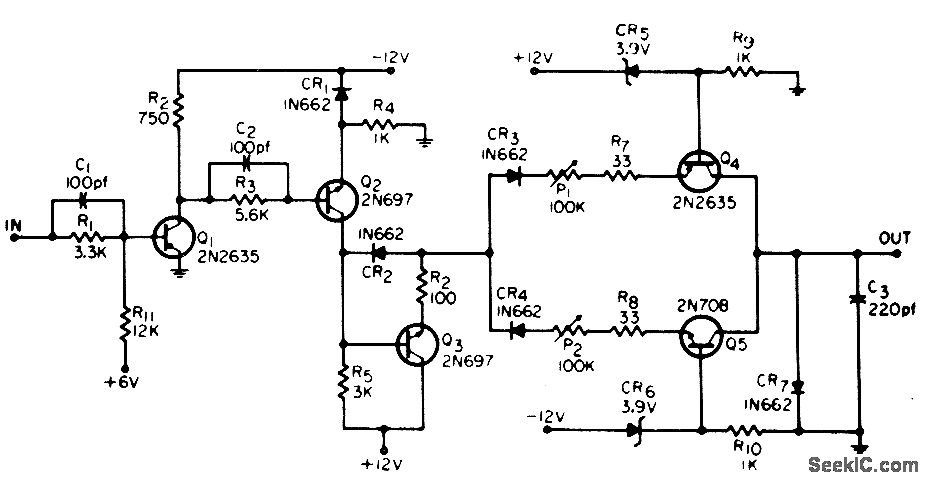

Generates linear ramps, either negative or positive, by switching two current sources on and off during charging of C3.-G. Marosi, Positive or Negative Slope Generator, EEE, 13:5, p 43.
