PLL_ULTRASONIC_GENERATOR

Published:2009/7/14 21:21:00 Author:May | From:SeekIC

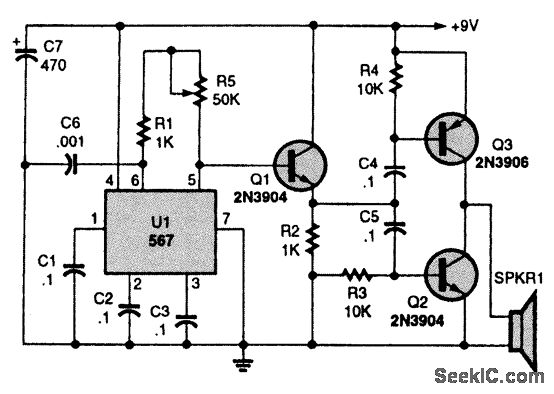

This ultrasonic generator is built around a 567 PLL. By adding a telegraph key, as described in the text, it can be turned into an ultrasonic transmitter.
