__GATED_WIDE_RANGE_VCO

Published:2009/7/11 3:49:00 Author:May | From:SeekIC

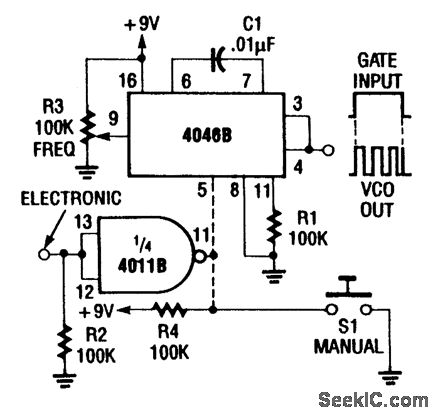

A CD4046 can be gated either with a switch or electronically, as shown in the figure. Frequency range of this circuit is to 1.5 kHz; use another C1 for higher frequencies.
