YELP_OSCILLATOR

Published:2009/7/6 5:44:00 Author:May | From:SeekIC

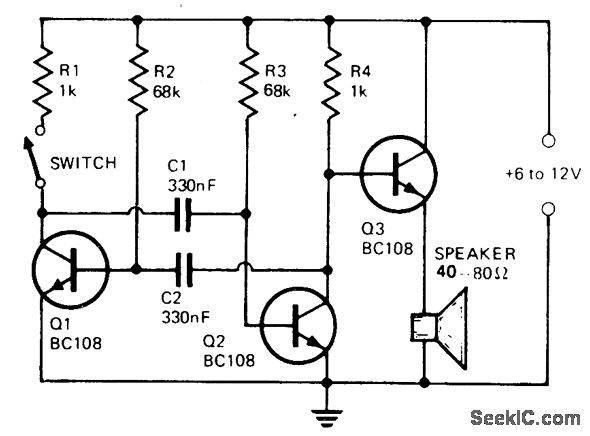

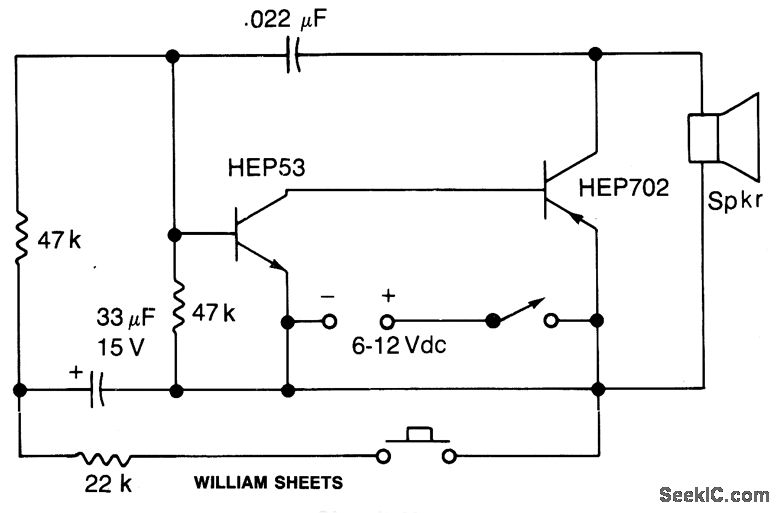

Close the pushbutton switch and the circuit starts the siren up-shifting to a higher frequency. Release it and the tone slides down until S2 is closed again. Tone quality is adjusted by changing the 0.022 μF capacitor.
