Watchdog_light_sensitive_oscillator

Published:2009/7/20 23:11:00 Author:Jessie | From:SeekIC

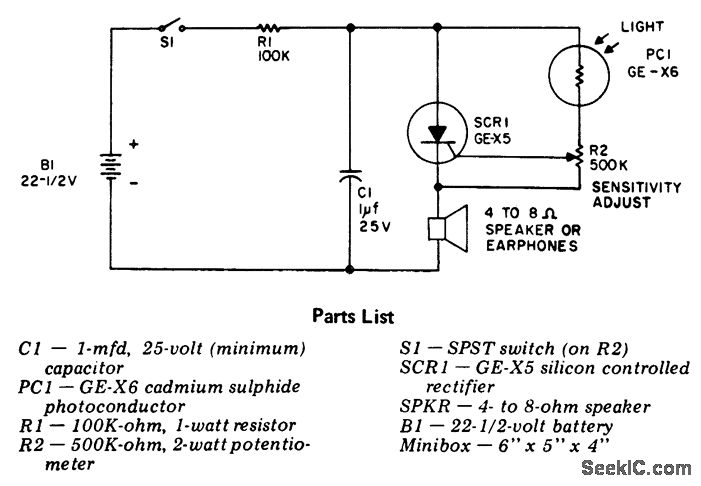

Watchdog light-sensitive oscillator. The basic circuit is a relaxation oscillator that sounds an alarm through a speaker or earphone. R2 is set for a bias current just below the firing level (courtesy General Electric Company).
