Wien_bridge_oscillator

Published:2009/7/23 22:50:00 Author:Jessie | From:SeekIC

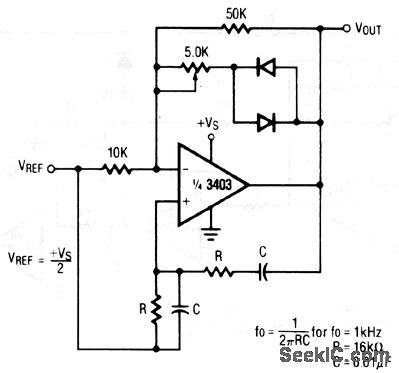

The frequency of VOUT is set by the values of R and C, as shown. Adjust the 5- kΩ potentiometer until the VREF point is one-half of the source voltage,VS. Raytheon Linear Integrated Circuts, 1989, p. 4-161.
