VERSATILE_WIDEBAND_ORYSTAL_OSCILLATOR

Published:2009/7/12 23:15:00 Author:May | From:SeekIC

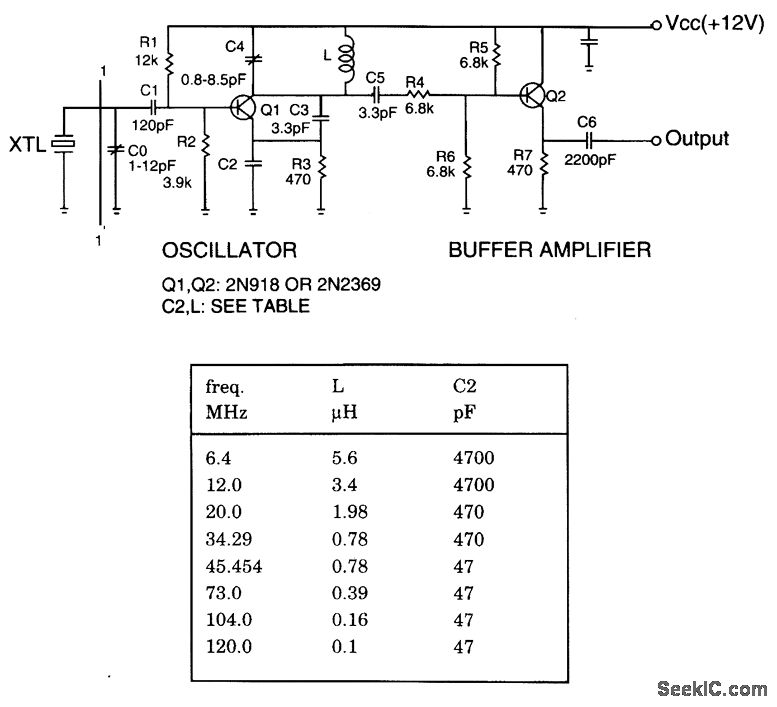

The crystal oscillator operates from 6 to 120 MHz by changing only C2 and L. The table lists component vaues for crystal oscillator at different frequencies.
