VARIABLE_DUTY_CYCLE_OSCILLATOR

Published:2009/6/24 21:42:00 Author:Jessie | From:SeekIC

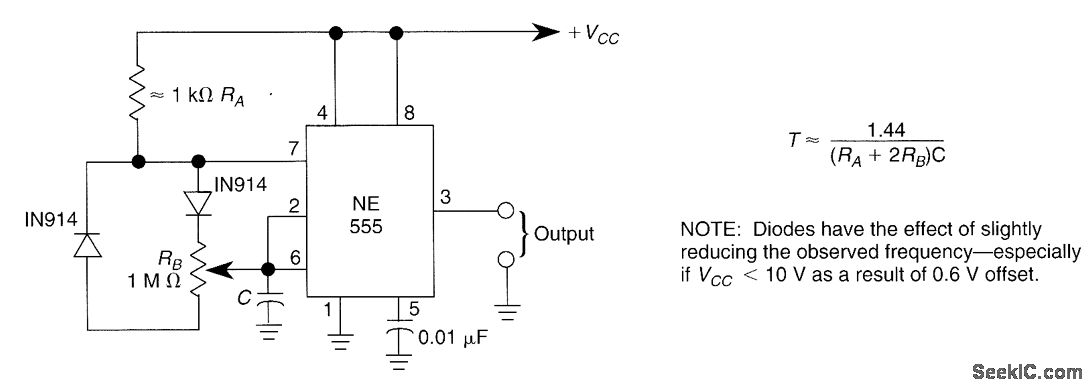

Using a potentiometer and steering diodes, this 1.2-kHz oscillator will provide 1 to 99% duty cycle. Vary C1 to change frequency.
