VARIABLE_AMPLITUDE_TUNNEL_DIODE_OSCILLATOR

Published:2009/7/20 2:07:00 Author:Jessie | From:SeekIC

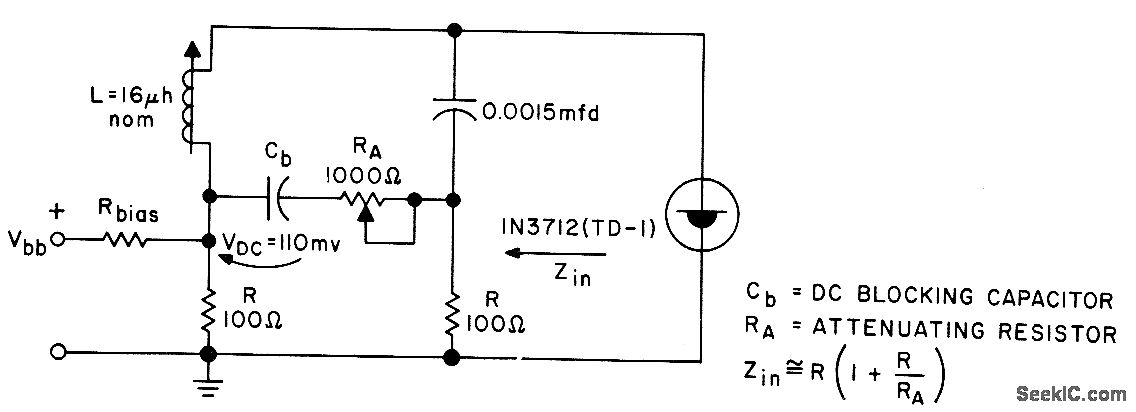

Attenuating resistor RA varies magnitude of oscillator swing, so oscillator operates over limited highly linear portion of diode conductance curve.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 351.
