UNIJUNCTION_TRANSISTOR_OSCILLATOR

Published:2009/7/19 22:57:00 Author:Jessie | From:SeekIC

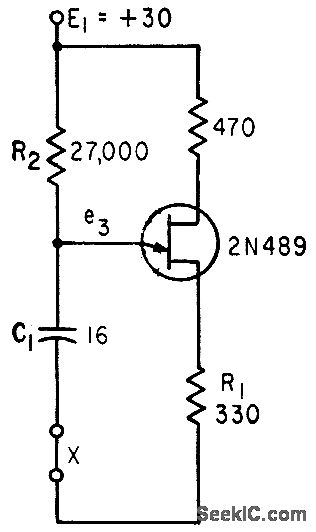

If circuit is broken at X, discharge current of C1 can be used to shut off transistor stage. -A. G. Lloyd, Overload Protection for Transistor Voltage Regulators, Electronics, 33:52, p 56-59.
