UJT_100_kHz_CALIBRATION_OSCILLATOR

Published:2009/6/23 1:49:00 Author:Jessie | From:SeekIC

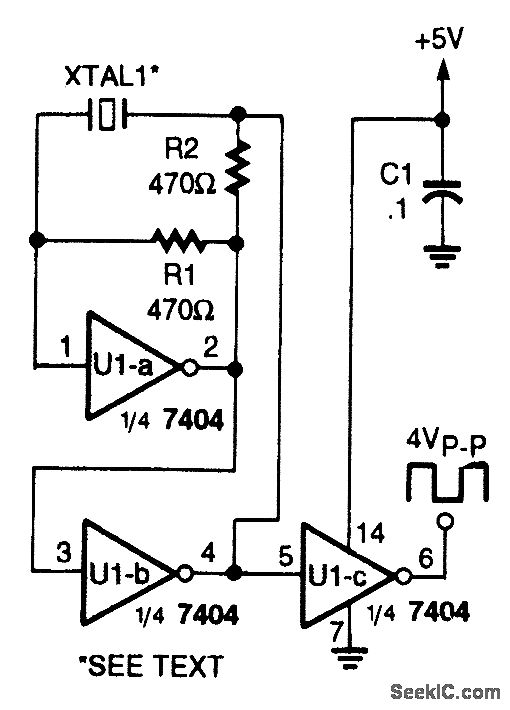

This unusual 100-kHz oscillator (whose fre-quency is determined by XTALl) can be used as a marker generator to calibrate the analog diai of a communication receiver, or its output can be fed to a divider courtter to produce a stable lower-fre-quency output for use as a clock-signal generator.
