THREE_DECADE_VCO

Published:2009/6/24 21:59:00 Author:May | From:SeekIC

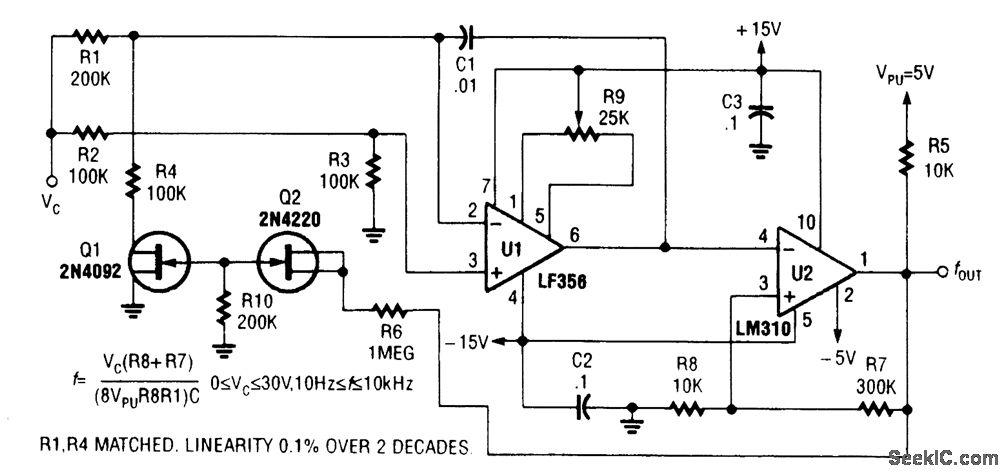

A range of 10 Hz to 10 kHz is covered by this circuit.
