THIRD_OVERTONE_CRYSTAL_OSCILLATOR

Published:2009/6/25 1:42:00 Author:May | From:SeekIC

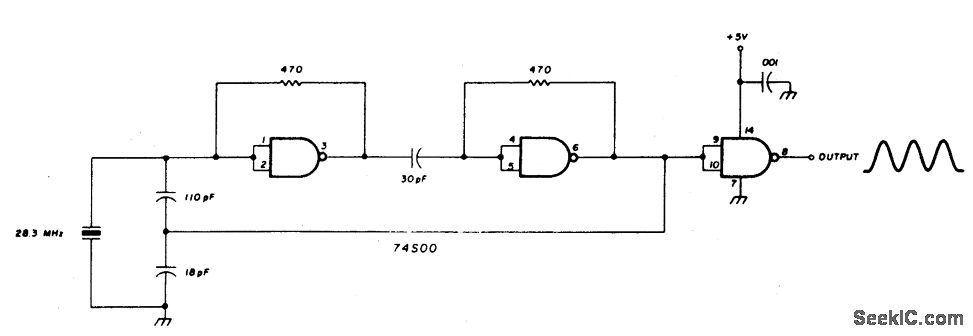

Circuit NotesThis circuit uses a 74500 Schottky TTL gate; no inductors are required.
