STABLE_START_STOP_OSCILLATOR

Published:2009/7/16 22:03:00 Author:Jessie | From:SeekIC

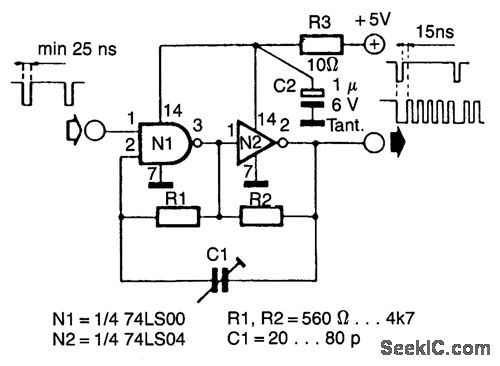

Oscillators that generate a predetermined number of pulses are often required in applications such as video work. This oscillator starts 13 ms after the control signal goes high and stops immediately when the input signal goes low.
