STABLE_LOWFREQUENCY_CRYSTAL_OSCILLATOR

Published:2009/6/25 3:02:00 Author:May | From:SeekIC

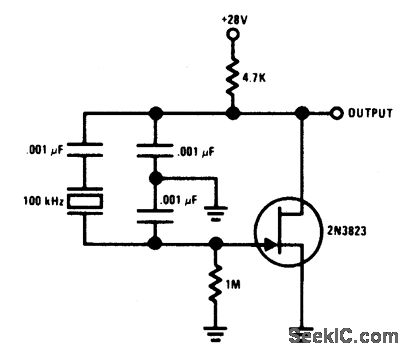

Circuit Notes This Colpitts-crystal oscillator IS ideal forlow frequency crystal oscillator circuits。 Ex-cellent stability is assured because the 2N3823 JFET circuit loading does not vary with tem-perature．
